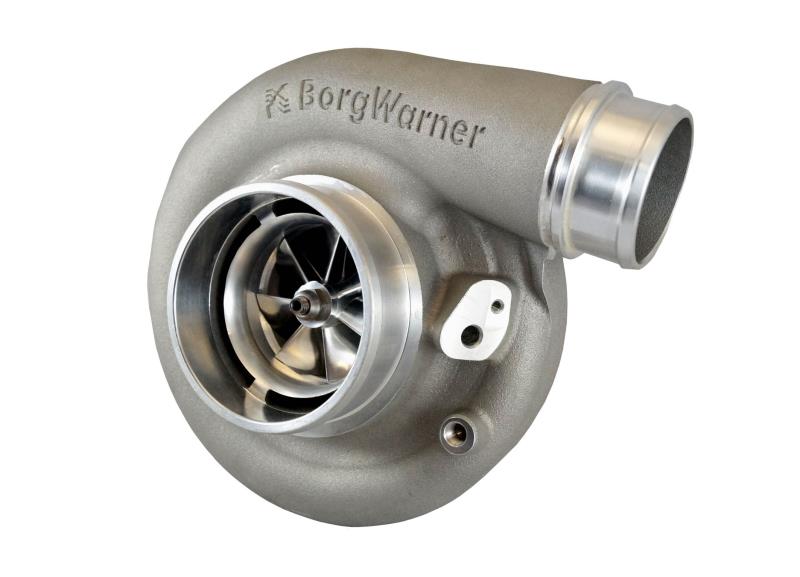

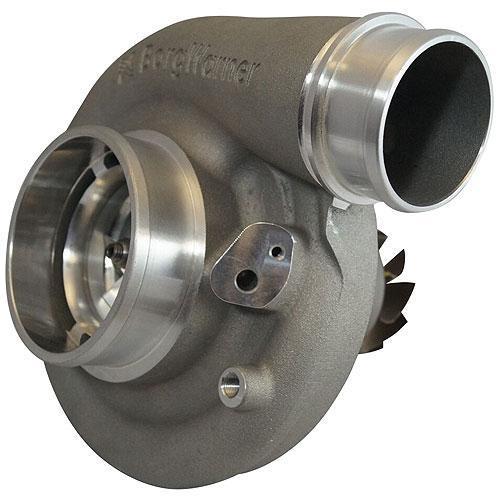

Турбина Borg S300SX-E 8780 64.47mm с хаузингом T4 twin scroll 0.91 A/R

Турбина Borg S300SX-E 8780 64.47mm с хаузингом T4 twin scroll 0.91 A/R

Новые серии s300 sxe обеспечивают повышение КПД компрессора до 3 процентов и увеличение потока до 25 процентов.

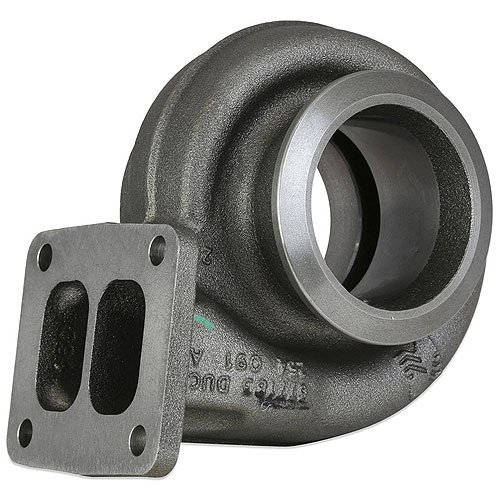

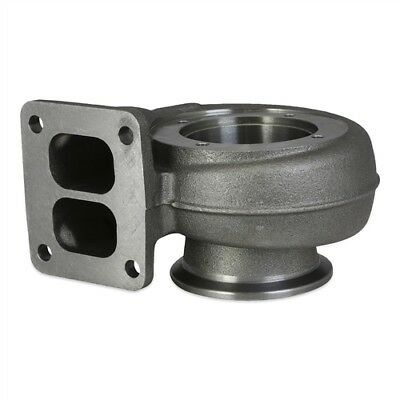

Комплектуется горячим хаузингом 0.91 A/R T4 Twin Scroll, литой корпус которого выполнен из высокопрочной нержавеющей стали и чрезвычайно гладкой внутренней обработкой для лучшего потока выхлопных газов.

Эти хаузинги имеют тонкие стены, чтобы уменьшить вес и тепловую инерцию.

64.47mm / 2.54'' Compressor Inducer Dia.

87.37mm / 3.44'' Compressor Wheel O.D.

73.37mm / 2.89'' Turbine Exducer Dia.

79.75mm / 3.14'' Turbine Wheel O.D.

Straight Compressor Outlet

Оригинальный фирменный товар

These turbochargers feature the latest in Forged Milled Wheel Technology, new high performance compressor housings with optimized aerodynamics, shaft speed sensor mounting provisions, and dual fit compressor outlet flanges. These exciting new releases cover a wide range of horsepower requirements with the 9180 S300SX-E touching 900+HP capability! BorgWarner AirWerks® S300SX-E super cores deliver up to a 3 percent increase in compressor efficiency and up to 25 percent more flow within the same frame size.

In the S300SX-E family we have 61.44, 62.99, 64.47, 66.11 and 69mm compressor wheel options, all come standard with the latest 73mm exducer turbine wheel. These units all come standard with BorgWarner's 360° thrust bearing for increased durability when used high pressure ratio applications. These turbochargers are available as a supercore assembly to drop into your existing S300SX turbine housing, or with a variety of T3, T4 or V-Band inlet configurations.

360 degree thrust bearing
Integrated speed sensor port

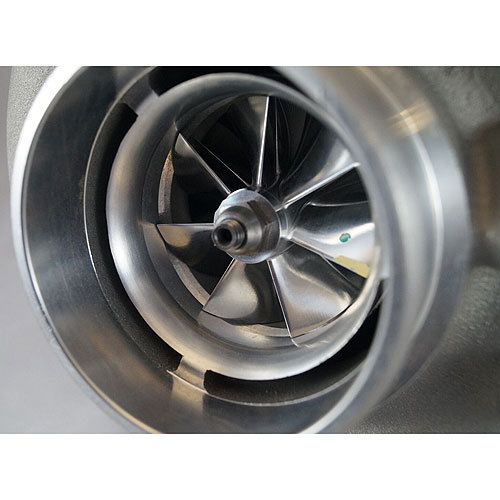

Forged milled compressor wheel
Flexible compressor cover outlet options

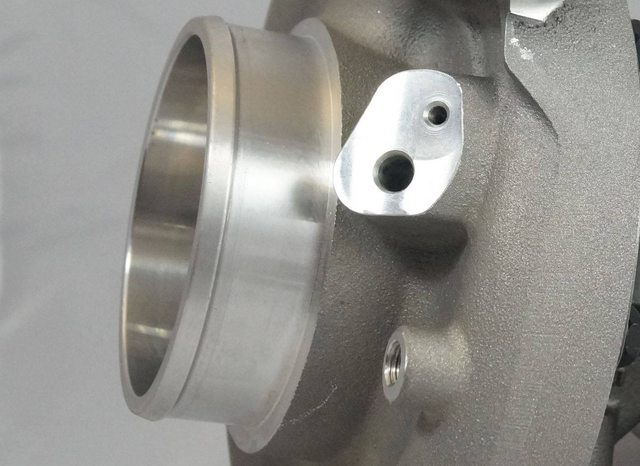

Pre-machined boost port
Optimized compressor cover aerodynamics
Not included with turbo assembles:
Speed sensor
Turbine outlet v-band
Turbine inlet gasket
Oil drain gasket or drain port fitting
